Efficient Bulk Material Handling for Demanding Industries
Fast unloading can make a significant difference when moving bulk materials on demanding worksites. Our side tipper trailers are designed to transport sand, gravel, soil and aggregates efficiently across mining, construction and agricultural operations.
For businesses seeking Side Tipper Trailers in Perth, Spartan Quip offers durable solutions with powerful hydraulic systems, excellent stability and reliable performance. Options including wear plates, liners and specialised hydraulic configurations allow each trailer to suit specific operational requirements.
Fast, easy and flexible
Receive instant quote and book your Side Tippers online.
Top Features
Technical Specifications
|
Specification
|
Details
|
|---|---|
|
Capacity
|
ATM: 47T
|
|
Tare Weight: 8.5T
|
|
|
Length
|
9.5m or 9.2m
|
|
Bowl Length
|
8m
|
|
Steel flooring & panels (depends on Customer)
|
Hardox 450
|
|
6mm steel floor, door, front and rear
|
|
|
4mm steel full side panel
|
|
|
Brakes
|
Drum or Disk
|
|
Kingpin
|
Single-position 90mm bolt-in (50mm optional)
|
|
Axles
|
K-Hitch 8.25 or BPW disk/drum brake axles
|
|
Suspension
|
K-Hitch FUWA FW520 8-leaf / 3 spring (air optional)
|
|
Landing Legs
|
K-Hitch 2-speed or Jost
|
|
Rims
|
10/285 PCD dual steel rims (Aluminium)
|
|
Tyres
|
11R22.5
|
|
Brake Kit
|
EBS multi-volt 12/24V - Knoor Bremse
|
|
Lighting
|
Full LED - Hella/Narva
|
|
Optional Extras
|
Hub Odometer
|
|
Road Train / Long Vehicles Sign
|
|
|
Spare Wheel: Steel or Alloy
|
|
|
Chassis
|
8m Top
|
|
4m Middle
|
|
|
8m Bottom
|
Skilled and Resourceful Side Tipper Trailer Manufacturer in Australia
We apply skill, innovation and creativity in manufacturing our side tippers. We have created a unique side door opening mechanism. This mechanism allows the door of the trailer to open before the body reaches a 5° tipping angle. Our side tippers in Perth are also demanded much overseas due to their high quality and efficiency. They are used in phosphate and coal mining where they have upgraded productivity against the conventional end tippers.

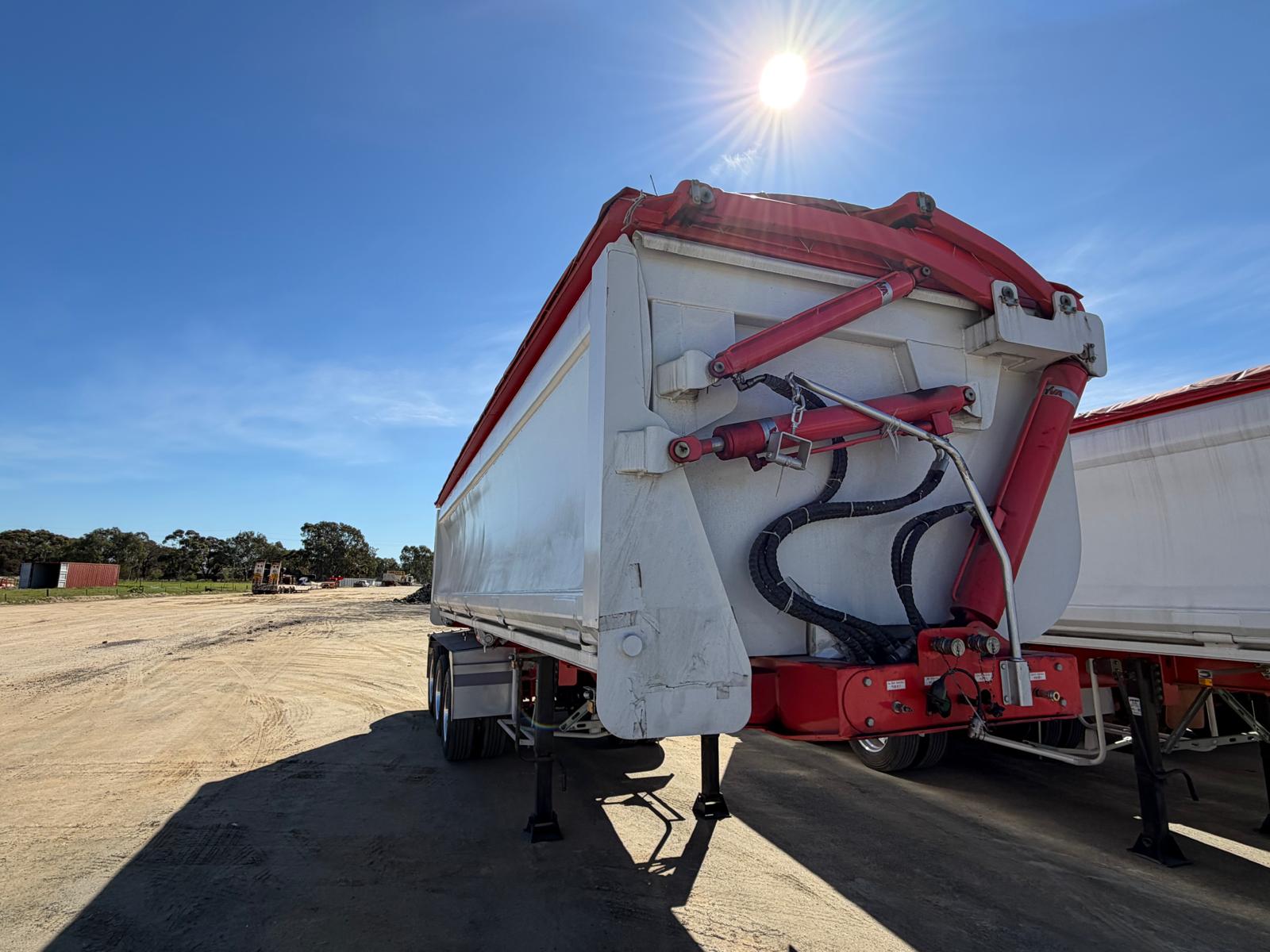

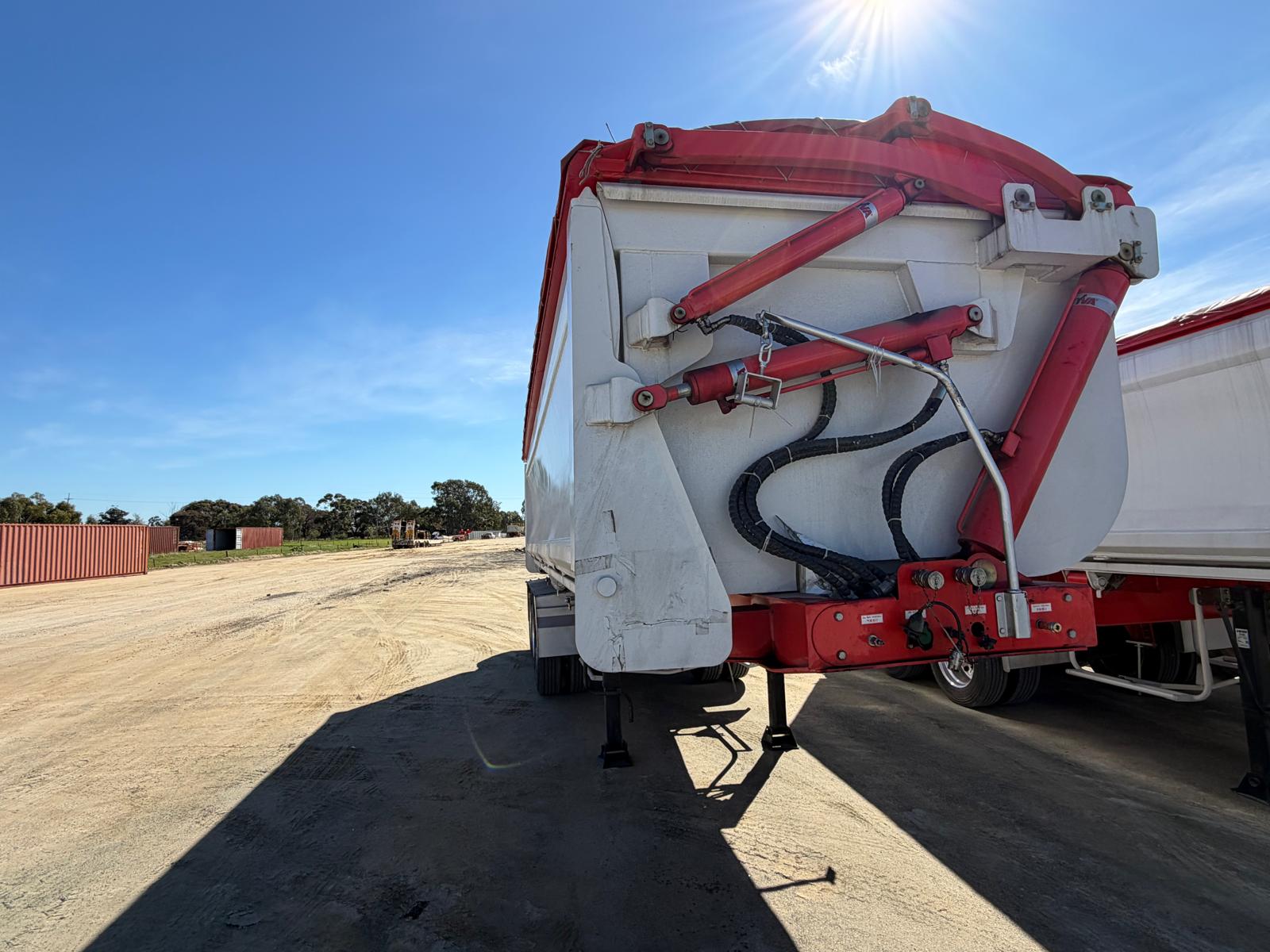

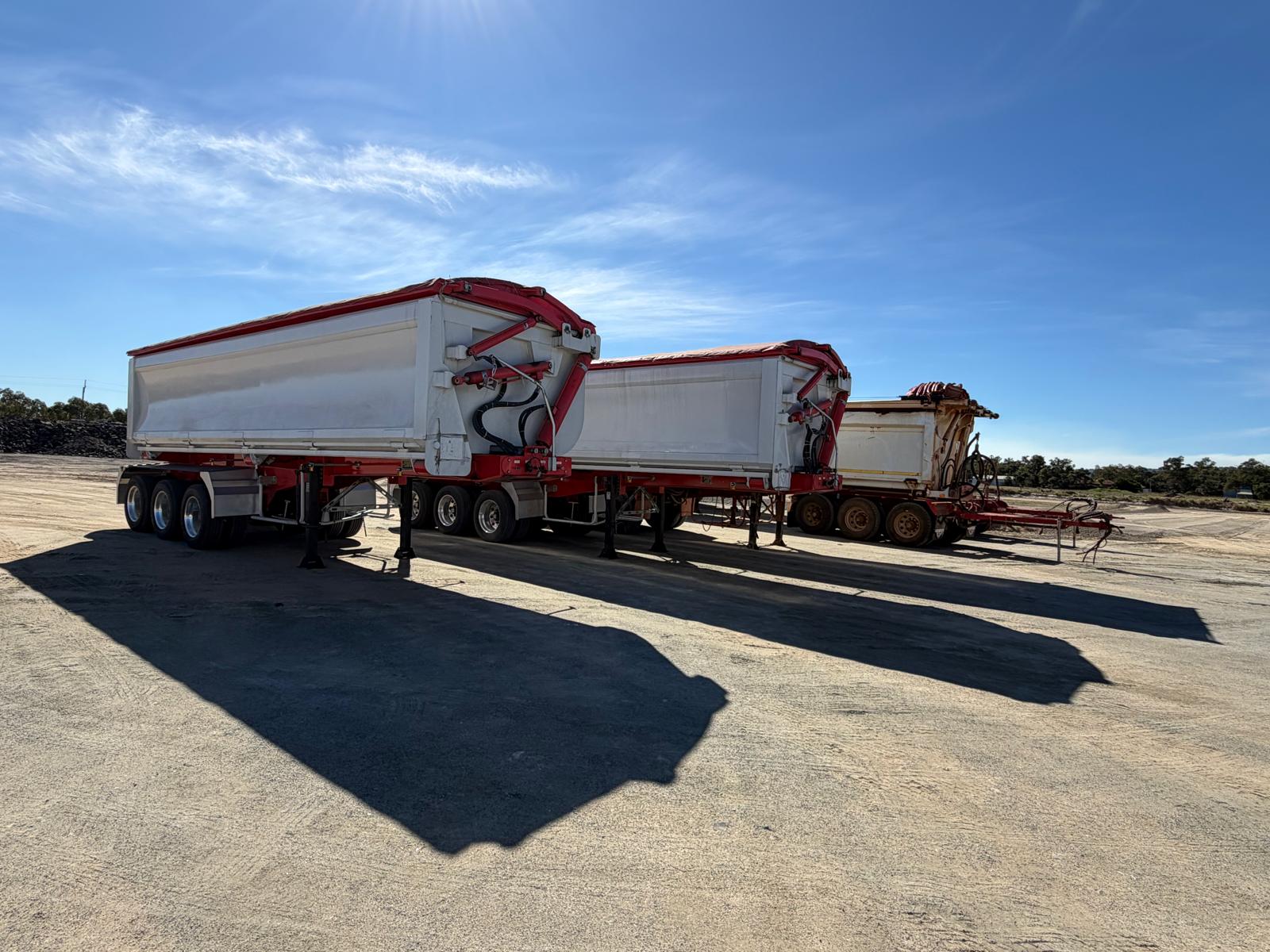

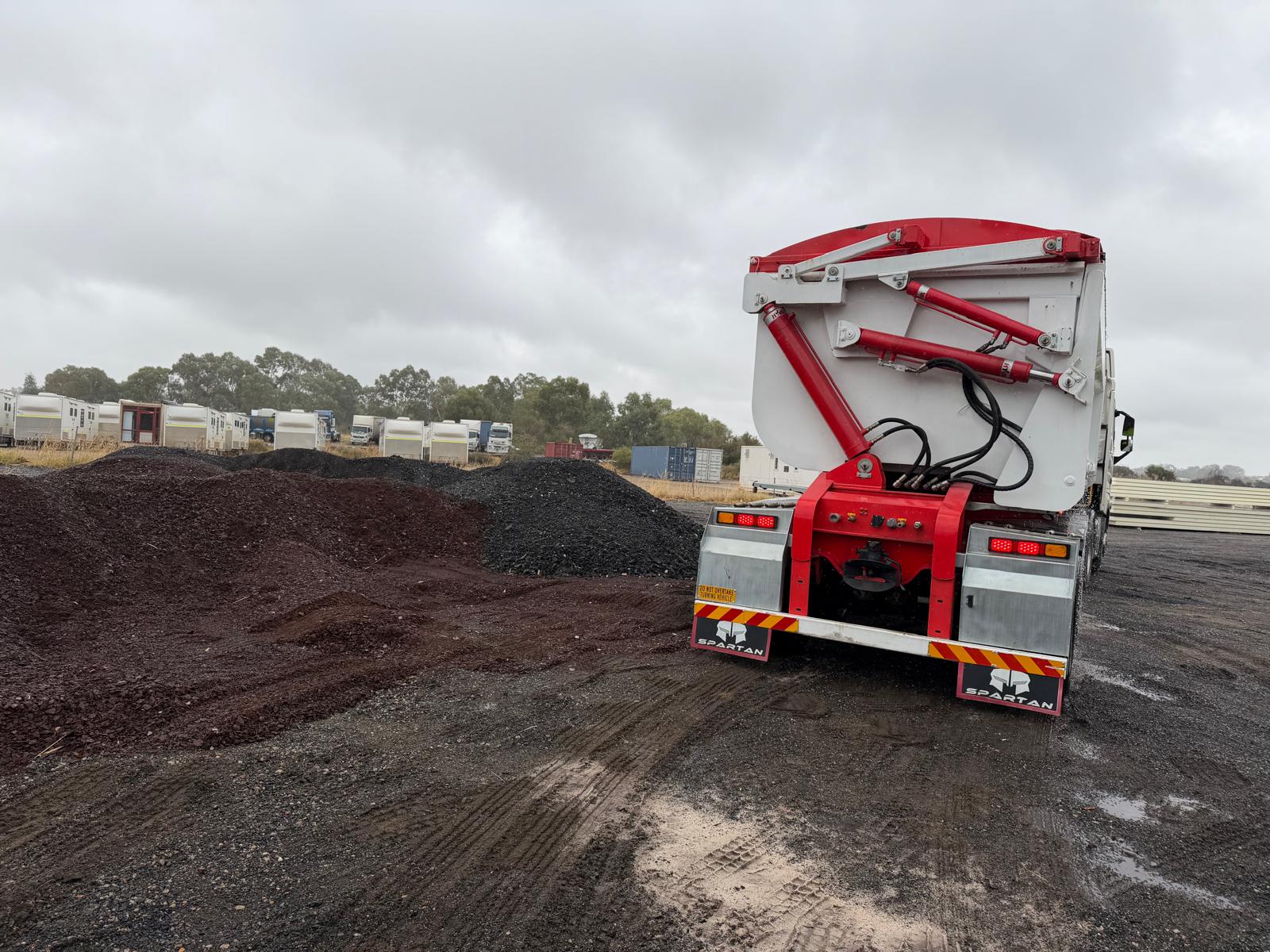

Gallery of Side Tippers
Best Tippers Built for tough Australian conditions
FAQs
Side tipping allows material to be discharged laterally rather than directly behind the trailer. This can be useful on sites where space, overhead clearance or access conditions make conventional rear tipping less practical.
Load distribution is important during side tipping because uneven or concentrated loads can affect stability. Freight should be positioned and secured appropriately, with the trailer operated only on suitable, stable tipping surfaces.
Side tippers are suited to bulk materials such as quarry products, aggregates, sand, gravel, soil and other loose materials. The body and tipping configuration can be selected according to the material and operating environment.
Consider the material being hauled, required payload, body capacity, tipping direction, site conditions and operating cycle. Body construction and material selection should also reflect the level of abrasion and impact expected.
Yes. Spartan Quip side tippers can be specified for demanding bulk-haulage applications, with heavy-duty body construction, suitable suspension and braking systems and other equipment selected around the intended operation.
